What Every Pool Owner and Pool Builder Needs to Know
Whether you’re installing a new pool or updating an existing one, pool drain covers are one of the most important, yet overlooked, components when it comes to safety, performance, and regulatory compliance. From preventing life-threatening accidents to ensuring proper water circulation, the right pool drain cover serves as the backbone of a safe and efficient pool system.
This guide breaks down the different types of drain covers, the benefits of each, how to comply with safety laws, and why the HydroFusion™ Drain from Blue Square is engineered to meet the evolving demands of pool builders and homeowners alike.
Why Pool Drain Covers Are a Non-Negotiable
Pool drains generate suction that pulls water into the filtration and cleaning systems. Without a properly installed and VGB-compliant anti-entrapment pool drain cover, that suction can become dangerous, posing a serious entrapment hazard.
- From 1999–2009, the U.S. Consumer Product Safety Commission (CPSC) recorded over 300 suction entrapment incidents, with 36 fatalities, many involving children.
- According to the PHTA, most incidents occurred in pools with outdated or non-compliant single-drain systems.
These alarming statistics led to the creation of the Virginia Graeme Baker Pool & Spa Safety Act (VGB Act)—federal legislation mandating entrapment protection measures in all public pools and spas.
- Bottom line for pool builders: No pool project should move forward without a VGB-compliant drain strategy.
- Bottom line for homeowners: If your drain cover is broken, outdated, or doesn’t specify VGB compliance, it’s time for a pool drain cover replacement.
Understanding the Types of Pool Drain Covers
There are several categories of drain covers, each suited to different pool designs, safety needs, and building codes. Here’s a side-by-side comparison:
| Drain Cover Type | Description | Best For | VGB Compliance Notes |
|---|---|---|---|
| Single Main Drain | One suction outlet, typically in the center of the pool floor | Older residential pools (must include safety backup) | Requires secondary system (VGRS or SVRS) to be compliant |
| Dual Main Drain | Two drains spaced >3 feet apart to reduce suction at any one point | Standard in new residential and commercial pools | Must use VGB-approved covers on both drains |
| VGB-Compliant Covers | Covers that meet ANSI/APSP-16 or ANSI/ASME A112.19.8 performance testing standards | All pools and spas (public or private) | Required for all public pools, recommended for residential |
| VGRS (Vacuum Release) | Vacuum Release Safety Systems that detect entrapment and release suction automatically | Retrofit options for non-compliant single drains | Retrofit options for non-compliant single drains |

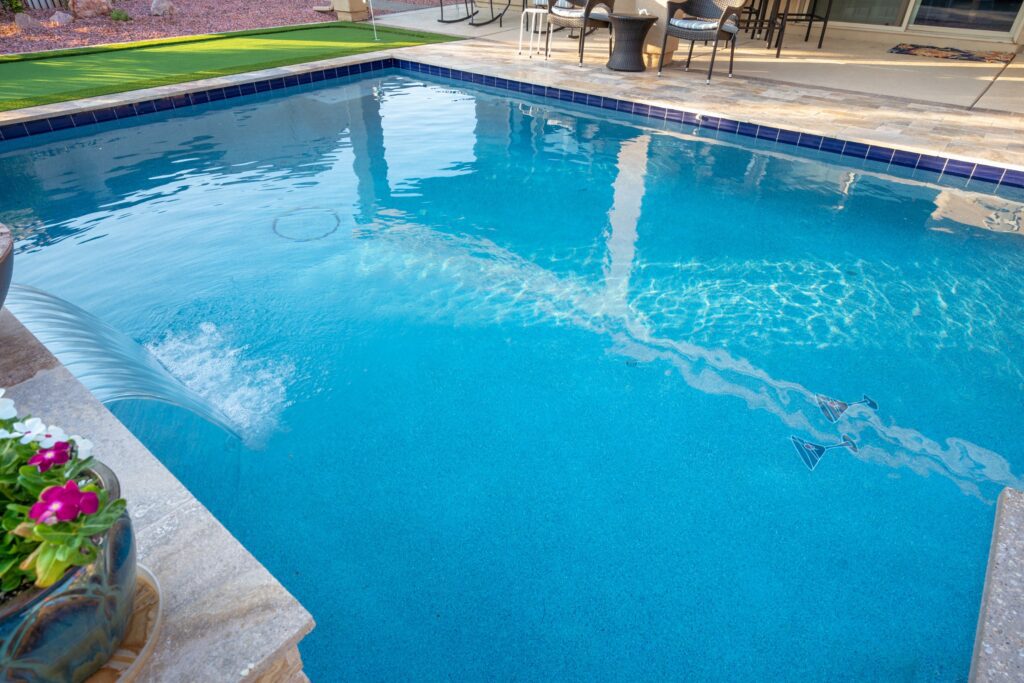

| Flat Pool Drain Cover | Low-profile drain with minimal protrusion to improve safety and aesthetic | Shallow areas, steps, spas | Must still be VGB-certified for applicable flow rates |
Builder Tip: Always verify the flow rate, pipe size, and system configuration before choosing a cover. Oversizing the cover can prevent entrapment and prolong the life of the system.
Key Benefits of Installing the Right Pool Drain Cover
1. Safety First—Always
- VGB-certified drain covers feature anti-vortex grates, domed designs, or flush mounts to prevent body, hair, or limb entrapment.
- For added safety, newer models include anti-entrapment features that disperse suction across a larger surface area.
2. Code and Insurance Compliance
- All public and commercial pools must be VGB compliant to legally operate.
- Many homeowner insurance policies require anti-entrapment pool drain cover documentation to validate coverage.
3. Improved Water Flow and Circulation
- Efficient drains ensure consistent water filtration, heat distribution, and chemical dispersion—critical for both maintenance and user comfort.
4. Longevity and Durability
- UV-resistant, chemical-resistant materials like ABS and polypropylene can last 5–7 years or longer with proper care.
5. Ease of Maintenance
- Well-designed drain covers reduce clogging and are easier to remove for inspection and cleaning, especially helpful for pool service techs and builders.
When Should a Drain Cover Be Replaced?
Pool drain covers are not lifetime components. Even the best covers degrade due to sun, chemicals, or mechanical stress.
Replace your pool drain cover if:
- It is cracked, warped, or discolored
- It has missing screws or loose fittings
- It’s over 5 years old, per manufacturer guidance
- It does not clearly state VGB 2008 or 2021 compliance
- You’re upgrading or remodeling the pool shell or plumbing
Builder Insight: Keep extra compliant covers on hand when performing remodels, especially for quick turnaround projects or inspections.
Spotlight on Innovation: The HydroFusion™ Drain by Blue Square
The HydroFusion™ Drain is a revolutionary new pool drain safety cover designed for modern pool systems, offering both safety and superior performance.
Why HydroFusion™ Stands Out
- VGB 2008 & 2021 Compliant
- Flush-mount design for a sleek, trip-free profile
- Large surface area for optimal suction dispersion
- Constructed from UV- and chemical-resistant ABS
- Ideal for in-floor cleaning systems and deep-end circulation
- Available for new construction or pool drain cover replacement
Whether you’re a homeowner upgrading to a safer pool system or a builder designing for luxury resorts or residential clients, HydroFusion™ balances safety, aesthetics, and engineering excellence.
Compliance Made Easy: Your Drain Cover Checklist
For pool owners and builders alike, use this checklist to confirm compliance and safety:
| Inspection Item | Requirement |
|---|---|
| Drain cover is VGB-compliant | Must state VGB 2008 or 2021 standard |
| Fasteners are secure and intact | No missing or rusted screws |
| No visible cracks or warping | Even small damage can compromise safety |
| Installed within lifespan guidelines | Replace after 5 years or sooner as recommended |
| Paired with secondary system (if needed) | Single drains must have a VGRS or SVRS device |
Final Thoughts for Pool Owners & Builders
The stakes for drain safety couldn’t be higher, but the solutions are simple. Upgrading to a modern, anti-entrapment pool drain cover like the HydroFusion™ Drain ensures that you’re protecting your pool users while staying in compliance with national laws.
- For builders, it’s an opportunity to deliver value, safety, and cutting-edge tech on every project.
- For homeowners, it’s a vital step in protecting your family and guests.
Ready to Upgrade Your Pool Drain Covers?
Contact Blue Square Manufacturing to learn more about HydroFusion™ and our line of safety-first pool products. Whether you’re designing a new build or replacing outdated equipment, we’re here to help.
